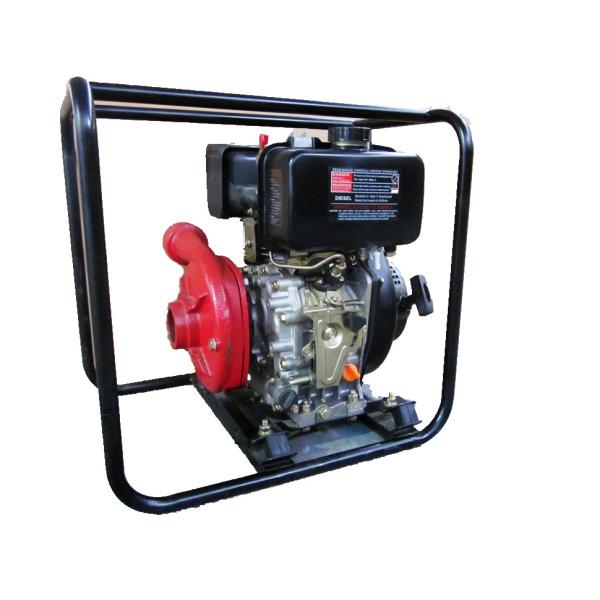

3 Inch Diesel Fuel Driven High Pressure Water Pump 5.5L Fuel Tank KDP30HS

Name: 3 Inch Diesel Fuel Driven High Pressure Water Pump 55L Fuel Tank KDP30HS
Brand: KAIAO
Price: 1 USD

Brand Name : KAIAO

Model Number : KDP30HS

Certification : CE

Place of Origin : CHINA

MOQ : 5

Payment Terms : Western Union, T/T, L/C

Packaging Details : CARTONS

Presure : High

Pump material : Cast iron

Power : diesel fuel driven

Model : KDP30HS

Max. flow(m3/h) : 47

Diameter(mm) (in) : 80(3" )

Contact Now

Water pump
1. ISO&CE improved
2. Driven by strong KAIAO 4-stroke diesel engine
3. Bilobed wheel design
4. Full frame structure ensures the outstanding performance of the pump in extremely hard condition.

3"INCH IRON High Pressure Water Pump
Model	KDP30HS
Diameter(mm) (in)	80(3" )
Max. flow(m³/h)	47
Max. lift(m)	80
Max. suction lift(m)	8
Rotational speed(rpm)	3600
Self-priming time(s/4m)	40
Pump shaft	Steel
Pump housing	cast iron
Impeller	cast iron
Engine model	KA186F
Engine type	Single-cylinder, vertical, four-stroke,air cooled
Bore*stroke(mm)	86*70
Displacement (L)	0.406
Power (kW)	6.3/3600
Fuel consumption rate(g.kW/h)	281
Compression ratio	19
Lubrication system	Pressure splash Type
Engine starting system	Recoil starter
Fuel oil model	Summer:0#,Winter:-10#
Lube oil model	SAE10W-30 (above CD grade)
Lube oil capacity (L)	1.1
Fuel tank capacity (L)	5.5
Dimension (LWH)(mm)	605525625
Net weight(Kg)	75
Gross weigt(Kg)	78

3 Inch Diesel Fuel Driven High Pressure Water Pump 5.5L Fuel Tank KDP30HS
